XP0421200L

Mfr.Part # : XP0421200L

Manufacturer : Panasonic

Description : TRANS PREBIAS DUAL NPN SMINI6

Stock : 507

Product Category : Transistors - Bipolar (BJT) - Arrays, Pre-Biased

Current - Collector (Ic) (Max) : 100mA

Current - Collector Cutoff (Max) : 500nA

DC Current Gain (hFE) (Min) @ Ic, Vce : 60 @ 5mA, 10V

Frequency - Transition : 150MHz

Mounting Type : Surface Mount

Package / Case : 6-TSSOP, SC-88, SOT-363

Power - Max : 150mW

Product Status : Obsolete

Resistor - Base (R1) : 22kOhms

Resistor - Emitter Base (R2) : 22kOhms

Supplier Device Package : SMINI6-G1

Transistor Type : 2 NPN - Pre-Biased (Dual)

Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA

Voltage - Collector Emitter Breakdown (Max) : 50V

Contact Now

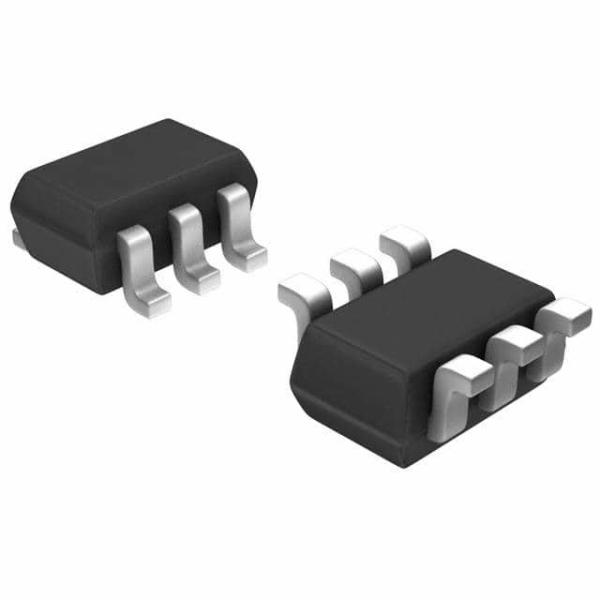

XP0421200L Images
