FJX3003RTF

Mfr.Part # : FJX3003RTF

Manufacturer : Fairchild Semiconductor

Description : SMALL SIGNAL BIPOLAR TRANSISTOR

Stock : 27410

Product Category : Transistors - Bipolar (BJT) - Single, Pre-Biased

Current - Collector (Ic) (Max) : 100 mA

Current - Collector Cutoff (Max) : 100nA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce : 56 @ 5mA, 5V

Frequency - Transition : 250 MHz

Mounting Type : Surface Mount

Package / Case : SC-70, SOT-323

Power - Max : 200 mW

Product Status : Obsolete

Resistor - Base (R1) : 22 kOhms

Resistor - Emitter Base (R2) : 22 kOhms

Supplier Device Package : SC-70-3 (SOT323)

Transistor Type : NPN - Pre-Biased

Vce Saturation (Max) @ Ib, Ic : 300mV @ 500µA, 10mA

Voltage - Collector Emitter Breakdown (Max) : 50 V

Contact Now

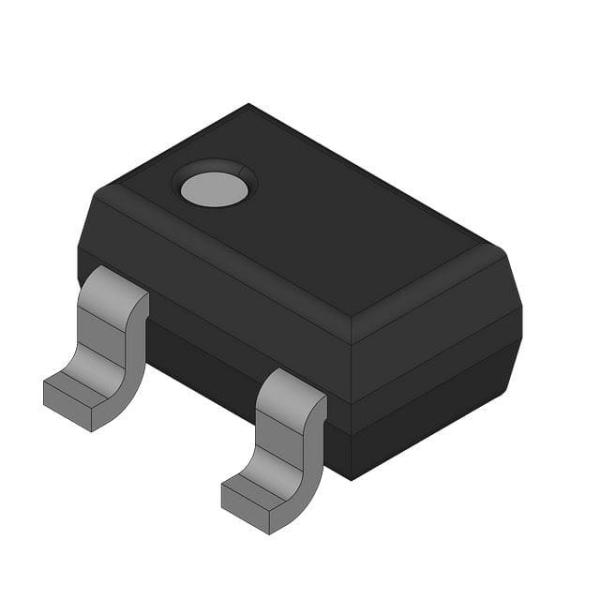

FJX3003RTF Images
